| Accessories Included | IR Remote + Mouse |
| Alarm Inputs / Relay Outputs | 16 in 4 out |
| Alarm Notification | Yes |
| Alarm Recording | Yes |
| Audio Inputs | 32 from Cameras |
| Backup Device | USB x 2 |
| Broadband Internet Access | P2P through Cloud Server or Webserver with Router – no software needed |
| Camera Input | 16 POE, 16 Non-POE |
| Compression Method | H265 (optimised) + H264+ |
| Device Expansion | – |
| Dimensions | 430(W) x 89(H) x 453 (D) mm |
| Dome & PTZ Controls | RS485 |
| Dual Streaming | Multi |
| Event Backup | USB |
| Event List | Yes |
| Hard Drive Options | Up to a maximum of 48TB |
| Image Quality | Multi options of Picture KB size. |
| Image Record Rate | Up to 800 PPS |
| Main Monitor Output | 1 HDMI / VGA |

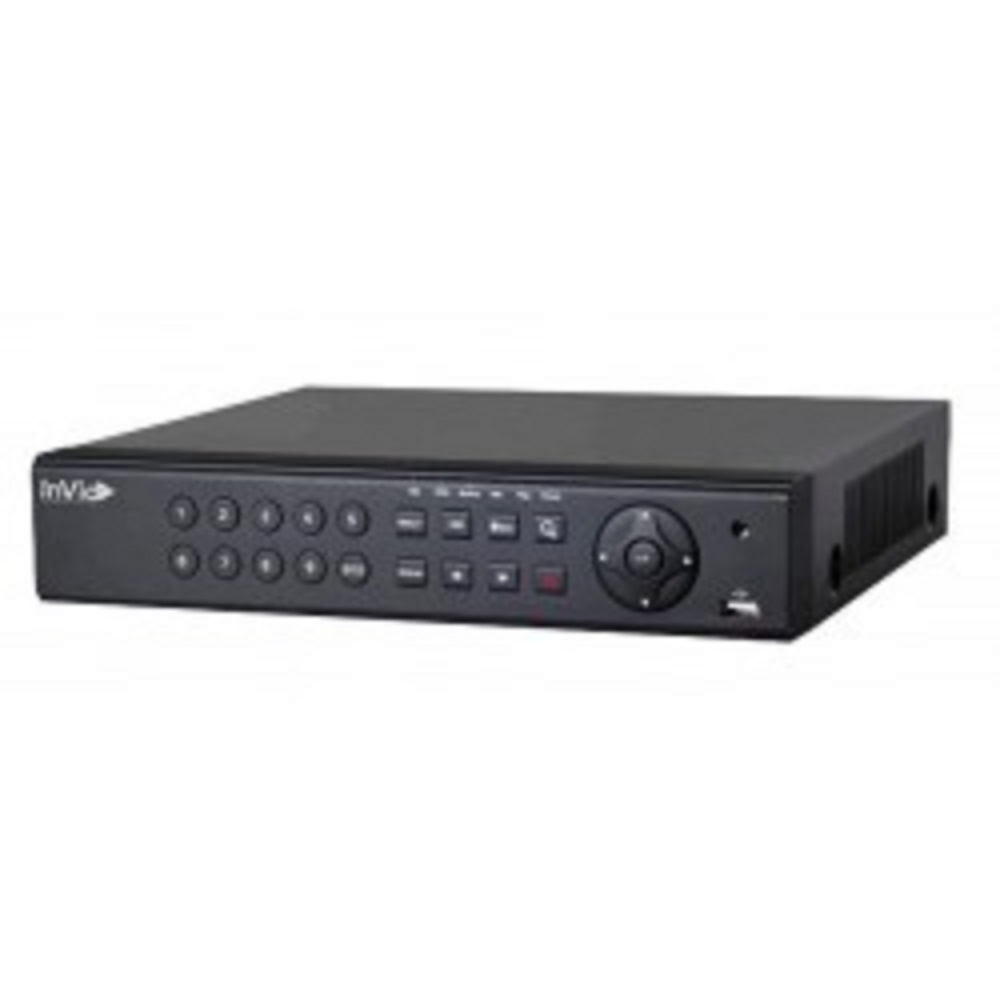

| Model | H265 FV-PRO POE 3532H8-16P PRO-2 Pentaplex 32ch NVR with 16 POE Ports. 8 Hard Drive Capacity. |
| Motion Detection | Yes |
| Network Access (LAN) | Yes |
| POE | 16 ports |
| Password Control | Yes |
| Playback Speed | – |
| Power | AC100~240V |
| Record Facilities | 24hr / Schedule / Motion |
| Record Frame Rate (PPS) | Up to 800 FPS |
| Recording Resolution (Quality Settings) | 5 Levels |
| Relay Outputs | 4 |
| Resolution (Best) | up to 4K dependant on Monitor and Camera |
| Storage Media & Capacity | Hard Drives up to 48TB |
| Tillscan | Option |
| Time and Date | Yes |
| Transmission / Networking | Webserver |
| VGA Monitor Output | Yes |
| Zoom | Yes |
New PRO-2 32ch H265 NVR records 60% more than H264 on same size Hard Drive and can also output 4K as well as other HDMI protocols. Supports IP Cameras up to 8 Megapixel @ 25fps and has a capacity for 8 Hard Drives. Intuitive and user-friendly Graphic User Interface(GUI), Windows style, operation by Mouse Remote control via IE or CMS: Preview, Playback and Backup. Multi-Mode Recording: Manual, Timer, Motion or Sensor Simultaneous 16CH Playback: Search: Time / Calendar / Events (alarm, motion) . Express and flexible backup via USB or Network. Pentaplex for Live, Record, Playback, Backup and Remote operation. P2P through Cloud Server or standard DHCP, DDNS, PPPoE Network protocol, IE browser and CMS. Multi Stream Technology to Encode Recording Stream and Network Stream respectively. User can adjust Network Stream to fit bandwidth without changing recording quality. Multi-users can be set to be online simultaneously with different passwords. HDMI up to 4K output. Powerful smart phone surveillance supporting Android phone, iPhone. Compatible with 3G Complete SDK function, easy to integrate with other applications Edit audio and video functions like masking objects (hiding objects), choosing day and time from recorded events, adding legends, choosing audio and video quality (128K~2Mbps, Frames per Second, Brightness, Colour, etc.), Cut files to choose special events – Audio and Video.
